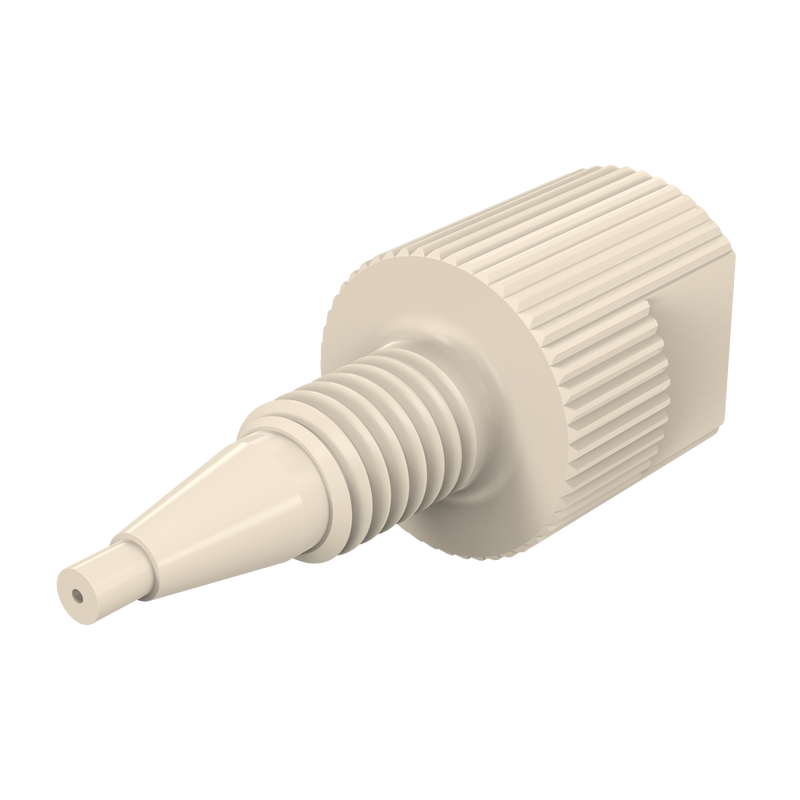

Sure Guard In-Line Filter Kit High Pressure
Part Number #JR-0611-SS05
VICI Jour Sure-Guard disposable in-line filter offers an easy and inexpensive way to protect valuable columns against fines and particles. They are easily connected directly to any column, with an inlet for 1/16" OD tubes and 10-32 threads. Sure-Guard filters can be changed in seconds without tools.
Advantages of Sure-Guard Disposable PEEK Filters:
- Minimal hold-up volume
- Disposable filter guard
- Titanium (biocompatible) and stainless-steel frits, permanently pressed in place
- Two porosity options
TECH TIP
We recommend 2 Āµm frits for columns with 5 Āµm or larger particles, and 0.5 Āµm frits for smaller particles.
NOTE
Polyethylene frits are designed for single use only.
Specifications
Materials:
| Part | Material |
|---|---|
|
Body |
PEEK |
|
Frit |
Stainless steel, titanium |
- 0.4 mm bore
- 10-32 female to 10-32 male threads
- Pressure rating 350 bar ( 5000 psi)
Links
Learn more about VICI Jour Frits
Look up Frit Volume Calculations
