High Pressure PEEK Unions

VICI Jour SKU: JR-067

Bore: 0.75 mm
Type: Body Only 10/32"
Quote Only


Standard PEEK internal unions enable easy connection of transfer/solvent lines. Completely inert and biocompatible, they are usable with most common organic and inorganic HPLC solvents without risking corrosion, metal contamination, or protein degradation that might occur with stainless steel.

Small diameter bores ensure low dead volume connections. These unions have the standardized Valco fitting details with a smooth transition of the taper into the threaded part. Connections to these PEEK unions can be made with any 10-32 fitting that uses polymeric ferrules.

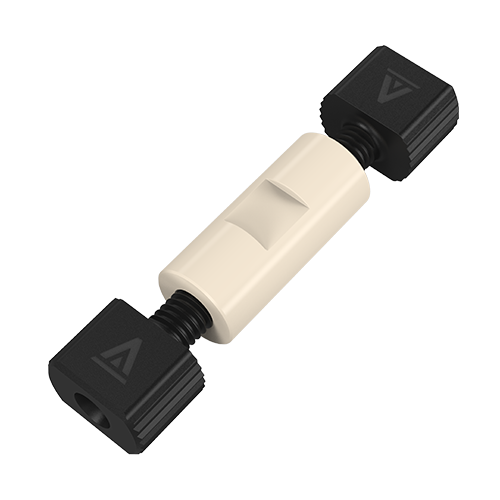

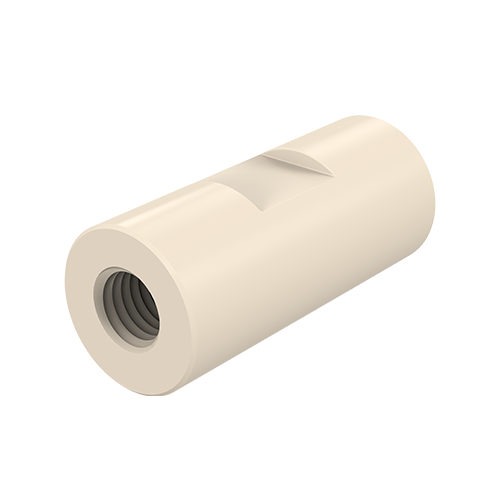

PEEK unions are available in body-only versions as well as complete with VICI-Jour PEEK one-piece fingertight fittings ready to connect to any 1/16" OD tubing.

For more information on PEEK refer to Properties of Polymers and Chemical Resistance of Materials.

For 1/16" OD tubing


Polyetheretherketone (PEEK)


Pressure Rating:

350 bar (5,000 psi)

(Varies with tubing material and ID)
