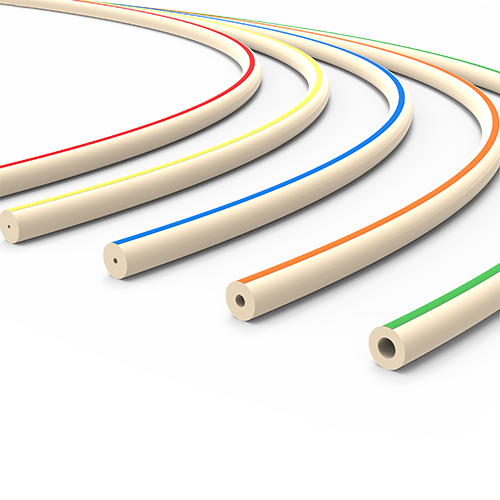

Color-coding provides easy identification of the ID of your PEEK tubing – each ID is coded with a different color stripe.
PEEK tubing has the strength required to withstand continuous use at HPLC pressure without swelling or bursting, and is not affected by halide salts, high-strength buffers, or other aggressive mobile phases that corrode stainless steel.
The polymer surface will not leach metal ions into the eluent or extract metal-sensitive components from the sample. However, PEEK can be somewhat absorptive of solvents and analytes, notably methylene chloride, DMSO, THF, which may cause swelling. High concentrations of sulfuric and nitric acid will attack PEEK.
Maximum recommended working temp: 100° C (continuous) for 1/16" OD tubing with ID ≤0.75 mm
The high-performance you expect from VICI Jour PEEK tubing, each ID coded with a different colored stripe for easy identification.
Other package sizes and tubing lengths are available
Customized ODs and IDs are available (minimum quantity of 30 meters)
Contact us for more information.
Statement of Compliance:
All polymers used in the manufacture of VICI Jour tubing are EU CIRS-REACH compliant. Additionally, all colorants used comply with RoHS (Restriction of Hazardous Substances)
PEEK Tubing Tolerances
|Tubing OD||OD (±)||ID (±)|
|360 µm||0.025 mm||0.013 mm|
|1/32"||0.025 mm||0.025 mm|
|1/16"||0.050 mm||0.025 mm|
|1/8"||0.075 mm||0.075 mm|
|1/4"||0.100 mm||0.100 mm|
- Check Chemical Resistance of PEEK and other polymers used in VICI tubing
- Check Pressure Ratings of PEEK tubing
- Tubing ID Volume / Length Conversion Chart
- Learn more about PEEK and other synthetic polymers used in VICI tubing. Properties of Polymers
