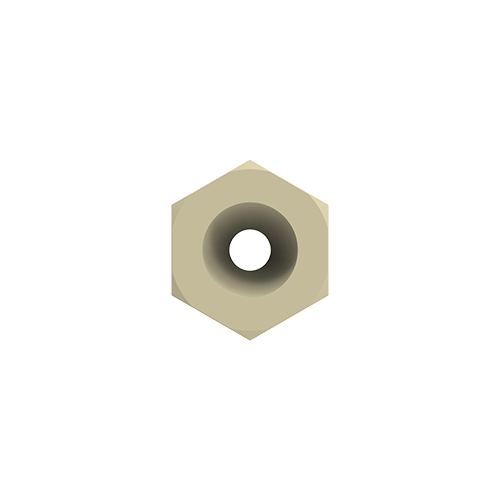

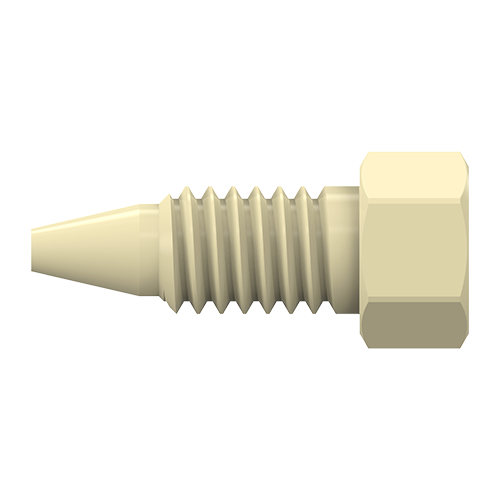

VICI Jour SKU: JR-5520N-10
Tubing OD/ Thread/ Hex/ Length: 1/16"/ 10-32/ 1/4"/ 17.0 mm
Quote Only

Overview

These biocompatible fittings are machined from special PEEK-HT TM for better pressure resistance than standard PEEK fittings. They are in one piece (no ferrule required) and come with a handy tightening tool.

Pack of 10.



For more information on PEEK, refer to Properties of Polymers and Chemical Resistance of Materials.




For 1/16” and 1/32” OD tubing

Material: Special natural PEEK-HT TM

Pressure rating: When used on stainless-steel tubing



OD Bar Psi
1/32" 625 9,000
1/16" 700 10,000



Threads:

1/32": 6-40

1/16": 10-32
