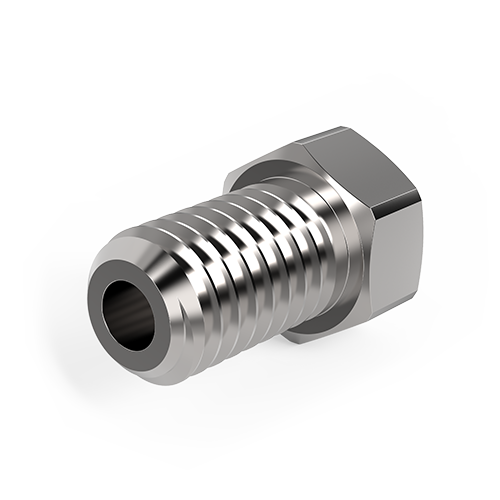

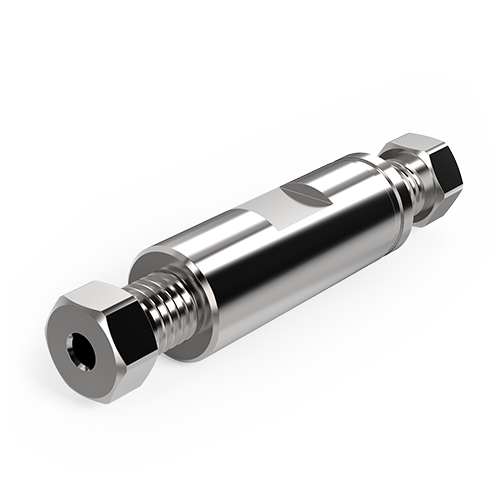

These nuts are for use with all standard Valco internal fittings and most valves. They also may be used with fittings from other manufacturers. The medium and long types are ideal for metal Valco and Cheminert® valves with more than 8 ports, or where the fitting head may be otherwise inaccessible.

They are sized for use with 1/32", 1/16", and 1/8" OD tubing, and are available in different lengths.

For more information on stainless steel, refer to Properties of Metals

Tech Tip

Using nuts with different lengths will create more space for easier wrench access.



Specs

For 1/32", 1/16", and 1/8" OD tubing

Pressure rating with premium SS tubing and ZF1S6 ferrule:

1,375 bar (20,000 psi)

(Varies with tubing material and ID)


Material: Type 303 Stainless steel



Threads:

Threads
1/32" 6-40
1/16" 10-32
1/8" 5/16-24



See Also

Valco ferrules

Stainless steel tubing

ValvTool for tightening hex-head fittings

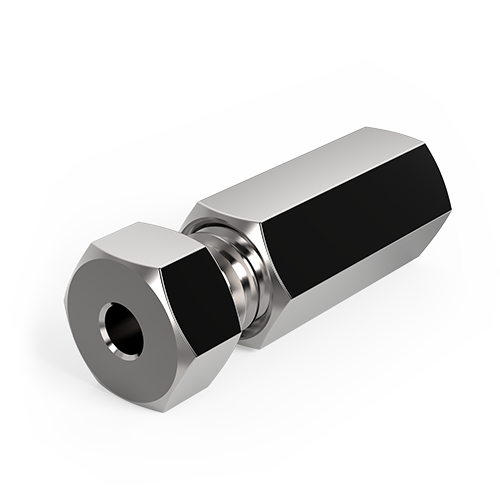

These stainless-steel nuts are designed for use with metal Rheodyne valves, sized for 1/16” OD tubing. Three different lengths are available to accommodate any possible connecting situation. The standard nut is suitable for easily accessible connections (pumps, valves, columns, detectors, etc.). For very tight and difficult-to-reach areas, we recommend the long and extra-long nut.

For more information on stainless steel, refer to Properties of Metals.



TECH TIP

Using nuts with different lengths will create more space for easier wrench access.



Specs

For 1/16” OD tubing

Pressure rating: 500 bar (7,250 psi)

(Varies with tubing material and ID)


Material: Type 303 Stainless steel

Threads: 10/32


See Also

Rheodyne Ferrules

Stainless-Steel Tubing

ValvTool for Tightening Hex-Head Fittings

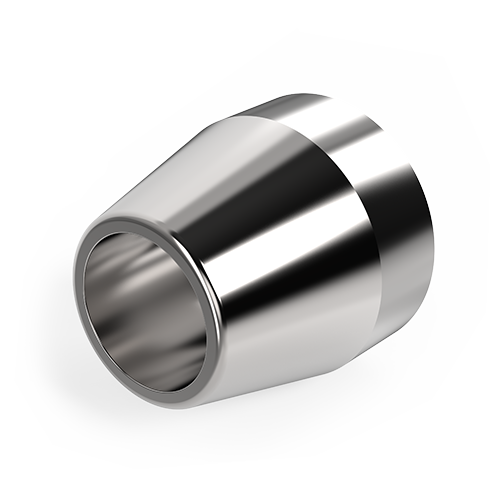

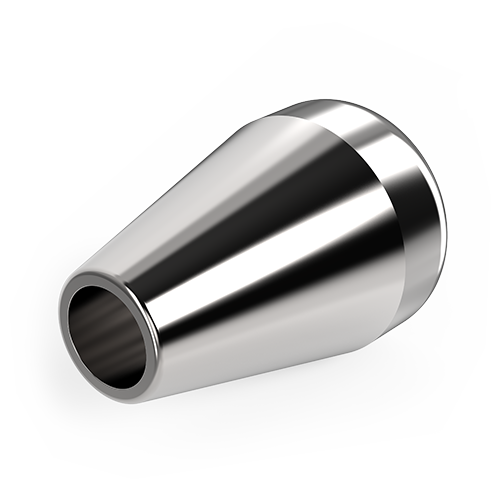

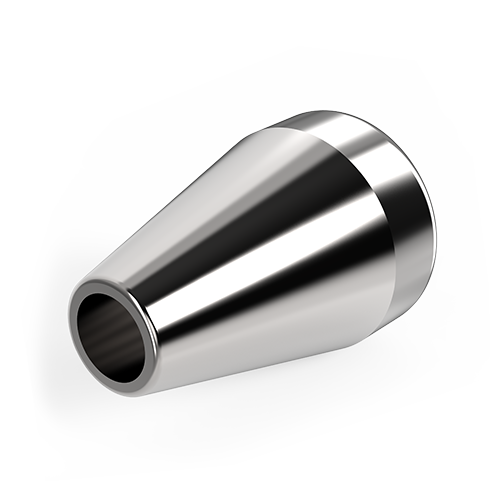

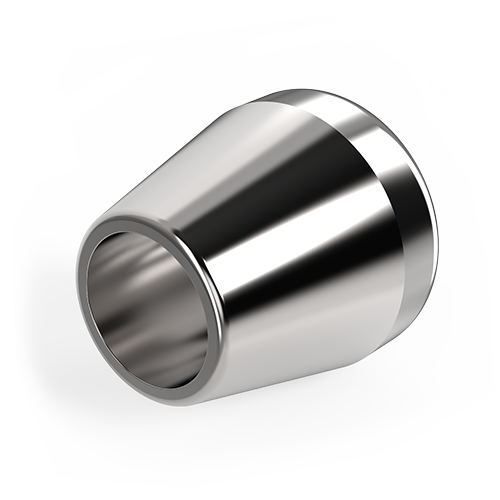

Valco stainless-steel ferrules for 1/32”, 1/16”, and ⅛” OD tubing are an excellent fit for all standard Valco internal fittings and most valves, or with those of most other manufacturers. These metal ferrules cut a ring near the end of the tube, preventing tube release at high pressures without significantly deforming and restricting the tube interior. (However, if the hardness of the tubing is equal to or greater than that of the ferrule, the result is more likely deformation of the tube rather than a cut ring.)

For more information on stainless steel, refer to Properties of Metals


Specifications

For 1/32", 1/16", and 1/8" OD tubing

Material: Type 316 SS

Pressure rating: 1375 bar (20,000 psi)(Varies with tubing material and ID)

See Also

Valco Nuts

Stainless Steel Tubing

ValvTool for Tightening Hex-Head Fittings

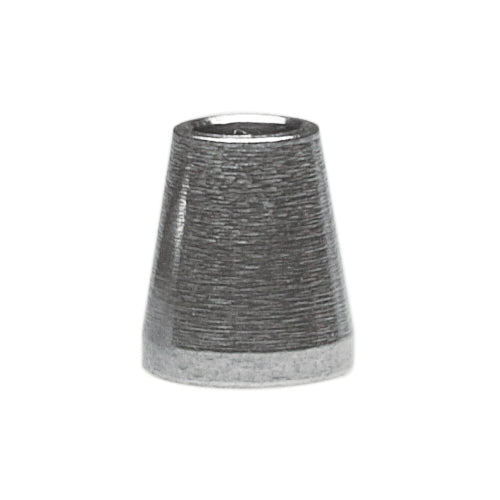

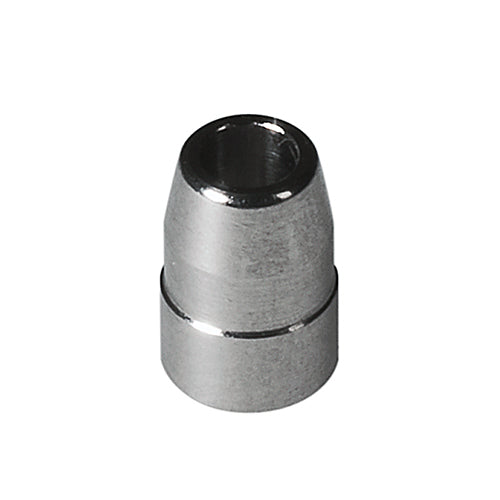

Designed specifically for use with Rheodyne stainless-steel valves and 1/16” OD tubing, these ferrules are an excellent fit to Rheodyne fitting details.


For more information on stainless steel, refer to Properties of Metals

Specifications

For 1/32", 1/16", and 1/8" OD tubing

Material: Type 316 SS

Pressure rating: 500 bar (7,250 psi)
(Varies with tubing material and ID)


Product suggestions:

Rheodyne Type Nuts

Stainless Steel Tubing

ValvTool for Tightening Hex-Head Fittings
