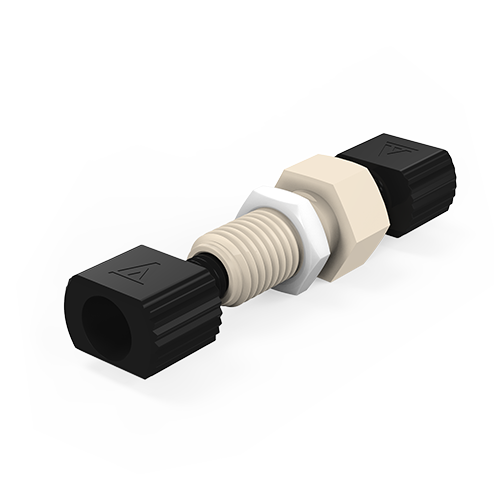

PEEK Bulkhead Union - Complete


Bore: 0.25 mm
Quote Only


For easy connection of transfer/solvent lines, bulkhead unions are designed to be mounted through an instrument panel or on a bracket. Typically the mounting nut goes inside the instrument so that the long threaded portion will be out of sight.

VICI Jour PEEK bulkhead unions are completely inert and biocompatible. They are usable with most common organic and inorganic HPLC solvents without risking corrosion, metal contamination, or protein degradation that might occur with stainless steel.

Small diameter bores are used to ensure low dead volume connections. These unions have the standardized Valco fitting details with a smooth transition of the taper into the threaded part.


Bulkhead unions require a minimum 10 mm panel hole and a maximum of 9 mm thickness.

More information on Properties of Polymers and Chemical Resistance of Materials

For 1/16" OD tubing


Polyetheretherketone (PEEK)


Pressure Rating: 350 bar (5,000 psi)

(Varies with tubing material and ID)

Spare Parts

Description Tubing OD Qty/pkg Product No.
PPS flangeless nuts 1/16" 10 JR-55070-10
1/8" 10 JR-55071-10
Inverted ETFE ferrules 1/16" 10 JR-041-10
1/8" 10 JR-051-10
