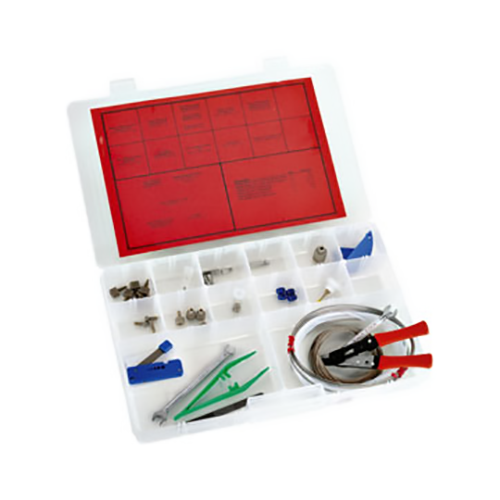

The ChromBox is an all-purpose analytical spare parts kit for all our customers using HPLC. It contains the most often used spare parts made of both high-quality Type 316L SS as well as PEEK and PTFE.
All boxed together for a very competitive price.
Includes:
- PEEK, PTFE, and stainless tubing
- PEEK and stainless nuts, ferrules, and unions
- Tubing cutters and wrenches
- More accessories, all in a convenient carrying case
| Description |
Qty. |
Product No. |
| ChromBox Kit |
1 |
JR-34N |
| PEEK Fittings |
|
|
| One-Piece 10-32 Fittings |
5 |
JR-55020-1 |
| Fingertight 10-32 Nuts |
5 |
JR-5580 |
| Long Hex-Head 10-32 Nuts |
5 |
JR-5510 |
| 1/16" Double Ferrules |
10 |
JR-5004 |
| Union, 0.25 mm Bore, Body Only |
1 |
JR-061 |
| Stainless Steel Fittings |
|
|
| 13 mm Long 10-32 Nuts |
5 |
JR-MZN1 |
| 19 mm Long 10-32 Nuts |
5 |
JR-LZN1 |
| 1/16" Ferrules |
10 |
JR-ZF1S6 |
| Union, 0.50 mm Bore |
1 |
JR-ZU1MS6 |
| PEEKTubing |
|
|
1/16" x 0.25 mm ID x 3 m,
Blue Stripe |
1 |
JR-T-6001-M3 |
1/16" x 0.50 mm ID x 3 m,
Orange Stripe |
1 |
JR-T-6002-M3 |
| PTFE Tubing |
|
|
| 1/8" x 1/16" ID x 3 m |
1 |
JR-T-6800-M3 |
| Stainless Steel Tubing |
|
|
| 1/16" x 0.25 mm x 3 m |
1 |
JR-T-625-10-M3 |
| 1/16" x 0.50 mm ID x 3 m |
1 |
JR-T-625-20-M3 |
| Filters |
|
|
| PEEK In-Line |
1 |
JR-68256 |
| Stainless Last Drop, 2 µm |
1 |
JR-9000-0530 |
| Accessories |
|
|
| Tubing Elbow, 90° |
1 |
JR-357090 |
| Tubing Elbow, 180° |
1 |
JR-357180 |
| Tubing Clip |
2 |
JR-9001 |
| Tools |
|
|
| Clean-Cut Polymeric Tubing Cutter |
1 |
JR-797 |
| Plier Style Stainless Steel Tubing Cutter |
1 |
JR-796 |
| ValvTool 1/4" x 5/16" Wrench |
1 |
JR-800 |
| 1/4" x 5/16" Open End Wrench |
1 |
JR-804 |
| Deburring File |
1 |
JR-802 |
| Tweezer |
1 |
JR-806 |
