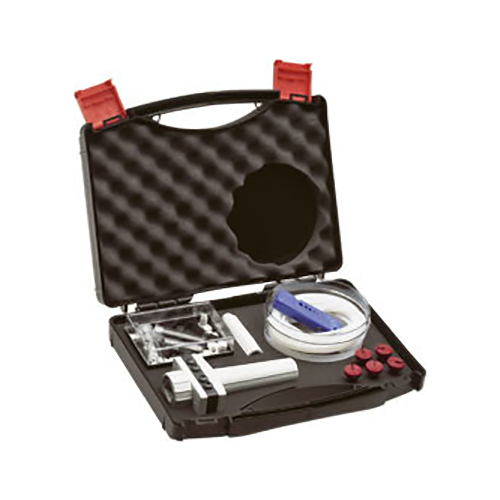

The Combi kit includes all the contents of the Easy-Flange Kit plus a length of 1/8" PTFE tubing, PPS nuts, and polypropylene rings in two sizes.
For perfect flanges, the Easy-Flange flange-rolling tool is suitable for PTFE and PTFE-like tubes with OD between 1/16" and 1/8". The tool forms the flange by applying a mechanical force—no heat or electrical power required.

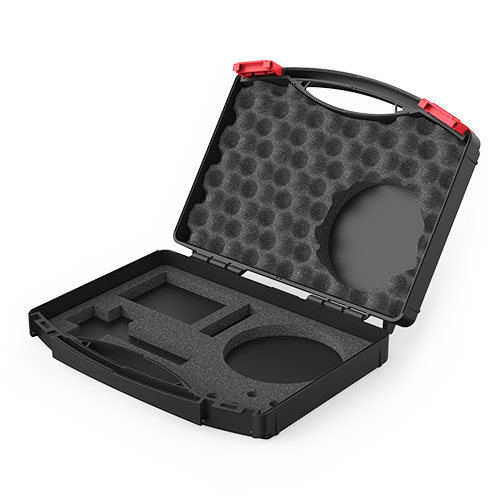

The kit also includes flanging discs in six sizes, a starter length of 1/16" PTFE tubing, and a carrying case
The quality of a flange made with the VICI Jour flange-rolling tool is superior to other methods, since the tubing is not stressed by heat, and because the specially designed negative conical profile of the flange-forming part yields an ideal shape for optimized sealing properties, free of contamination.
|Easy-Flange Combi Kit||JR-201539|

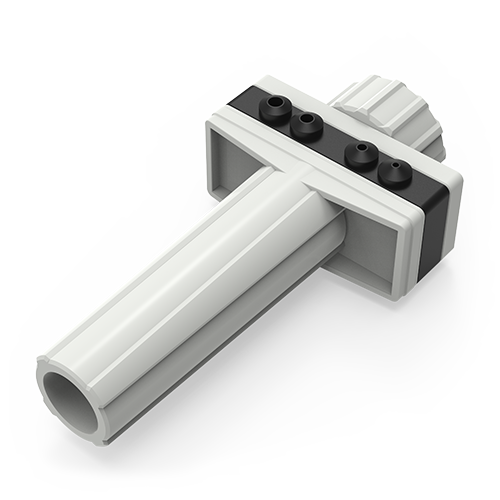

|Includes: Flanger and distance gauge||JR-201532|

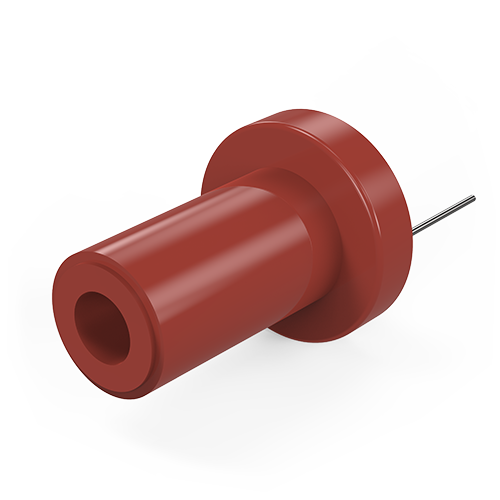

with: 0.5 mm Stainless Steel pin for PEEK tubing

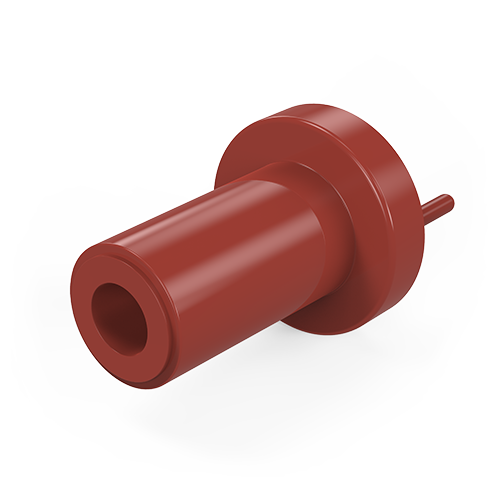

|0.8 mm Polymer pin||JR-201541|

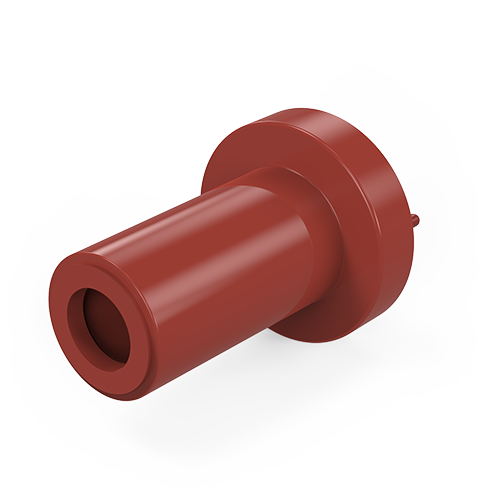

|0.8 mm Titanium pin||JR-201554|
|1.3 mm Polymer pin||JR-201536|
|1.3 mm Titanium pin||JR-201537|
|PP nut 1/4-28, flanged, for 1/16" tubing, pkg. of 10||JR-201094WH-10|
|1/4-28, flanged, for 1/8" tubing, pkg. of 10||JR-201580BK-10|
|For 1/8" tubing, pkg. of 10||JR-201928-10|
|PTFE Tubing 1/16" x 0.75 mm ID x 3 m||JR-T-4036-M3|
|1/8" x 1/16" ID x 3 m||JR-T-6800-M3|
|Clean-Cut tubing cutter||JR-797|
|Flanging disc with 1.0 mm polymer pin||JR-201662|
|Flanging clamp pair||JR-201531|
