Eco Caps and Eco Cap Kits
Part Number #JR-9000-0007

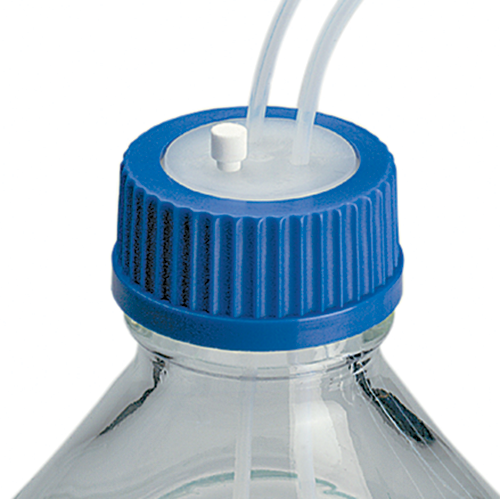

With no threading inside its tubing ports, the Eco-Cap provides a versatile, competitively priced option for sparging and delivering mobile phases, compatible with all standard GL54 thread bottles. Eco caps consist of an ETFE insert with three ports (two for ⅛” and one for 4 mm tubing) with a polyethylene collar.
VICI Jour Eco cap includes:
- 1 cap, GL45 thread, with three ports
- Polypropylene male Luer plug for 4 mm bore
Also available as a kit, with the addition of
- 1 safety-coated glass bottle (option of 1 L or 2 L)
NOTE
Eco Caps are not usable for building up a helium atmosphere within the solvent bottle but only for continuous helium sparging.
TECH TIP
Once the mobile phase is degassed, we recommend using VICI Jour impermeable tubing between bottle cap and pump to prevent regassing of helium-degassed solvents.
Specifications
Materials:
Part | Material |
---|---|
Screw collar | Polypropylene |
Pouring ring | Polypropylene |
Eco-cap insert | ETFE |
O-rings | EPDM |
Luer plug | Polypropylene |
More information about the Chemical Resistance of Materials.
Spare parts
Description | Qty/pkg | Product No. |
---|---|---|
Male Luer plug, polypropylene | 10 | JR-070350-10 |
