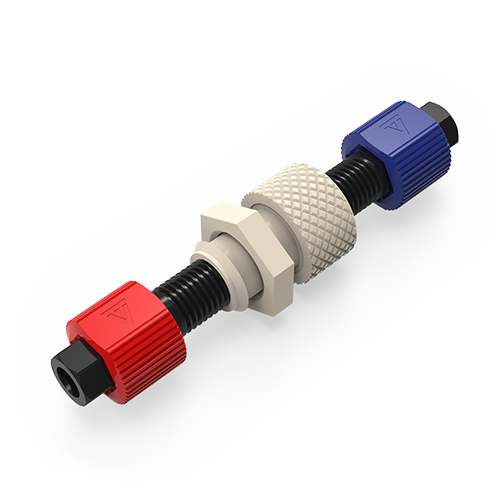

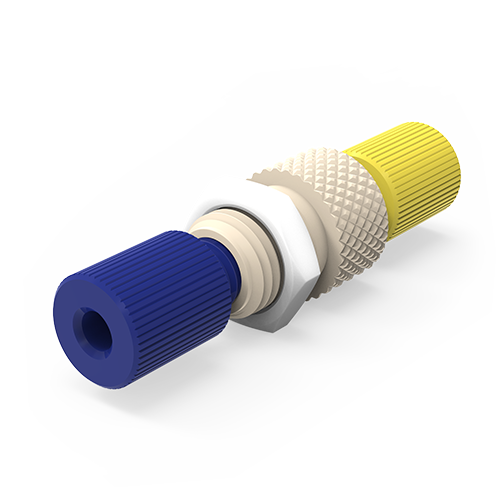

Low Pressure PEEK Bulkhead Union - Complete
Part Number #JR-CBULPK
Bulkhead unions are designed to be mounted through an instrument panel or bracket for quick and reliable connection of low-pressure solvent lines. Available in two bore sizes for 1/16" and 1/8" OD tubing, with fittings included. Low dead volume. Completely inert and biocompatible.
Panel mounting (10 mm hole required). Use with color-coded adapters for easy solvent line identification.
Bulkhead unions are sold complete with fittings, and include:
- 2 PPS flangeless hex-head nuts
- 2 ETFE inverted ferrules
- 2 Color-Sleeve adapters
Specs
For 1/16" and 1/8" OD tubing with flangeless connections
| Materials: | |
|---|---|
| Body | PEEK |
| Nuts | PPS |
| Ferrules | ETFE |
Threads: 1/4-28 threads
Pressure rating: (varies with tubing material and ID)
| OD | Bar | PSI |
|---|---|---|
| 1/16" | 105 | 1500 |
| 1/8" | 35 | 500 |
TECH TIPS
- Use our impermeable tubing to avoid gas diffusion in the solvent lines
- While PEEK bulkhead unions are typically used with inverted ferrules, collapsible ferrules or flanged connections can also be used
More Info
Product suggestions:
High-Pressure PEEK Bulkhead Unions
Color-Sleeve Adapters, available in 6 colors
Spare Parts
| Description | Qty/pkg | Product No. |
|---|---|---|
| PPS Flangeless Nuts 1/16" | 10 | JR-55070-10 |
| PPS Flangeless Nuts 1/8" | 10 | JR-55071-10 |
| Inverted ETFE Ferrules 1/16" | 10 | JR-041-10 |
| Inverted ETFE Ferrules 1/8" | 10 | JR-051-10 |
