Low Pressure PEEK Crosses

Part Number #JR-6039

$72.60 Sale ā€¢ Save
Type
Tubing OD

VICI Jour crosses for low-pressure applications have 1/4-28 female ports that accept flanged or flangeless fittings for 1/8" or 1/16" OD tubing, with 1/4-28 flat-bottomed fitting details. Machined from PEEK, they are completely inert and biocompatible.


Choose smaller through-holes for applications where low flow rate or low dead volume is required. Tees with 1.50 mm through-holes are preferred for high-flow rate applications.

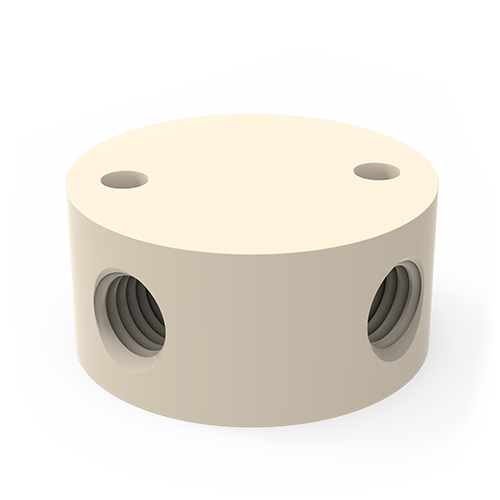

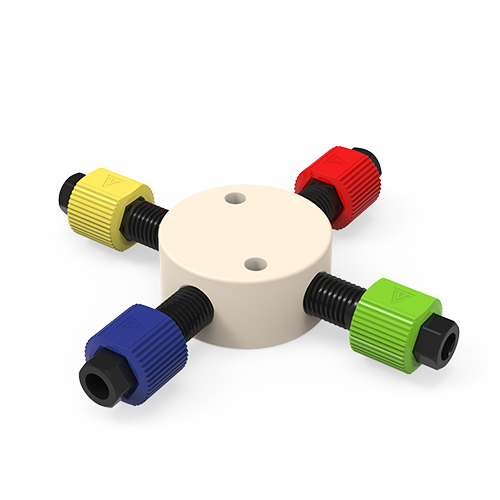

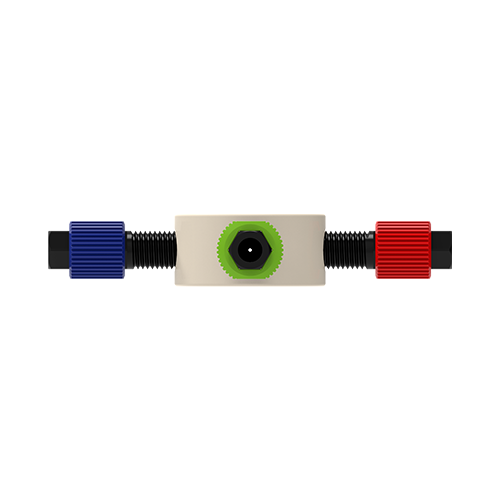

VICI Jour PEEK crosses are available as the body only, or complete with fittings. A cross with fittings includes:

  • 4 PPS flangeless hex-head nuts
  • 4 ETFE inverted ferrules
  • 4 Color-Sleeve adapters

Specs

For 1/16" and 1/8" OD tubing with flangeless connections


Part Material
Body PEEK
Nuts PPS

Ferrules

ETFE


Threads: 1/4-28 threads


Body size:

25.0 mm diameter

12.0 mm thick


Pressure rating: (varies with tubing material and ID)

OD Bar PSI
1/16" 105 1500
1/8" 35 500


TECH TIPS

Use our impermeable tubing to avoid gas diffusion in the solvent lines

While crosses are typically used with inverted ferrules, collapsible ferrules or flanged connections can also be used


More Info

Properties of Polymers


Spare parts

Description Qty/pkg Product No.
PPS Flangeless Nuts 1/16" 10 JR-55070-10
PPS Flangeless Nuts 1/8" 10 JR-55071-10
Inverted ETFE Ferrules 1/16" 10 JR-041-10
Inverted ETFE Ferrules 1/8" 10 JR-051-10

See Also

High-Pressure PEEK Crosses

Color-Sleeve Adapters, available in 6 colors

Spare Parts
