Low Pressure PEEK Manifold - Complete with Fittings
Low Pressure PEEK Manifold - Complete with Fittings
Low Pressure PEEK Manifold - Complete with Fittings
Low Pressure PEEK Manifold - Complete with Fittings

Low Pressure PEEK Manifold - Complete with Fittings

Part Number #JR-C5M1PK

$185.00 Sale • Save
Ports
Bore Size

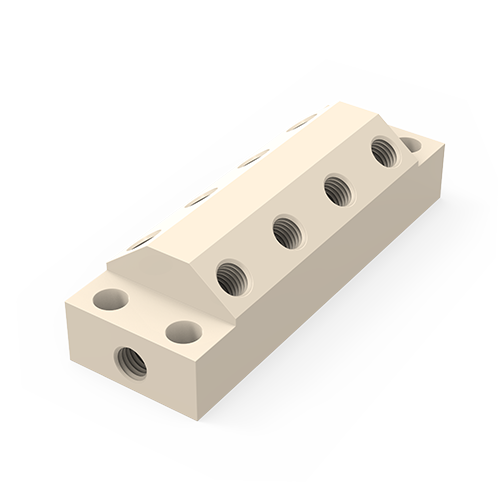

VICI Jour manifolds for 1/16" or 1/8" OD tubing 1/4-28 flat-bottomed fitting details are ideal for low-pressure applications. Sold complete with fittings, manifolds are machined from PEEK and are completely inert and biocompatible.


Manifold bodies have 1/4-28 female ports that accept any flanged or flangeless fittings for 1/8" or 1/16" OD tubing.


Choose 0.75 mm bore for applications where a medium flow rate or lower dead volume is required. (Tees with 1.50 mm through-holes are preferred for high flow rate applications.)

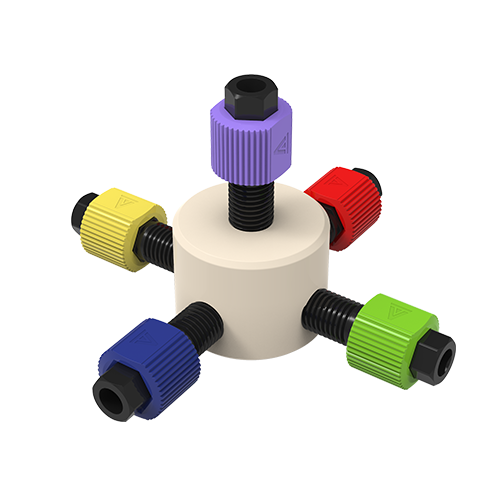

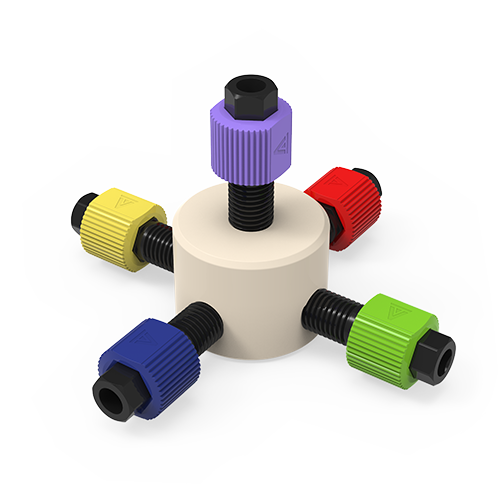

Manifolds with either 5 or 9 ports are packaged with the following fittings:

  • 5 or 9 PPS flangeless hex-head nuts
  • 5 or 9 ETFE inverted ferrules
  • 5 or 9 Color-Sleeve adapters

Specs

For 1/16" and 1/8" OD tubing, with flangeless connections


Materials:

Part Material
Body PEEK
Nuts PPS
Ferrules ETFE

Threads: 1/4-28 threads

Body size:

Number of Ports Body Size

5 ports

 22.2 mm diameter 17.1 mm thick
9 ports 22.2 mm diameter 28.6 mm thick

Pressure rating: (varies with tubing material and ID)

OD Bar PSI
1/16" 105 1500
1/8" 35 500

More Info

See Properties of Polymers

TECH TIPS

  • Use our impermeable tubing to avoid gas diffusion in the solvent lines.
  • While manifolds are typically used with inverted ferrules, collapsible ferrules or flanged connections can also be used.

Spare Parts

Description Tubing OD Qty/pkg Product No.
PPS flangeless nuts 1/16" 10 JR-55070-10
1/8" 10 JR-55071-10
Inverted ETFE ferrules 1/16" 10 JR-041-10
1/8" 10 JR-051-10
