Low Pressure PEEK Tees

Part Number #JR-6029

$62.20 Sale ā€¢ Save
Type
Tubing OD

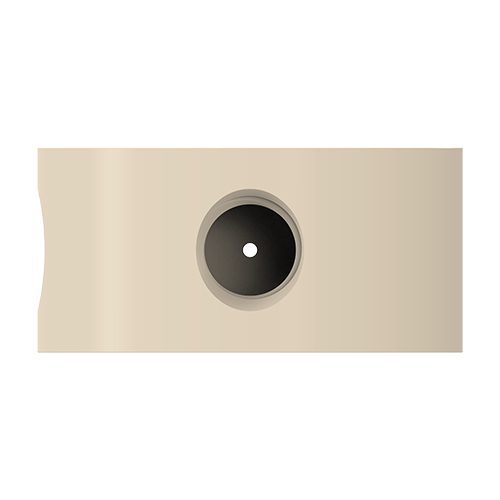

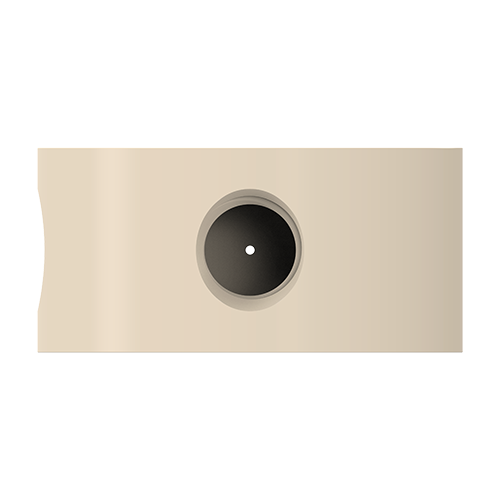

PEEK tee bodies have 1/4-28 female ports that accept flanged or flangeless fittings for 1/8" or 1/16" OD tubing, and 1/4-28 flat-bottomed fitting details. Machined from PEEK for low-pressure LC, they are completely inert and biocompatible.


Choose smaller through-holes for applications where low flow rate or low dead volume is required. Tees with 1.50 mm through-holes are preferred for high flowrate applications.

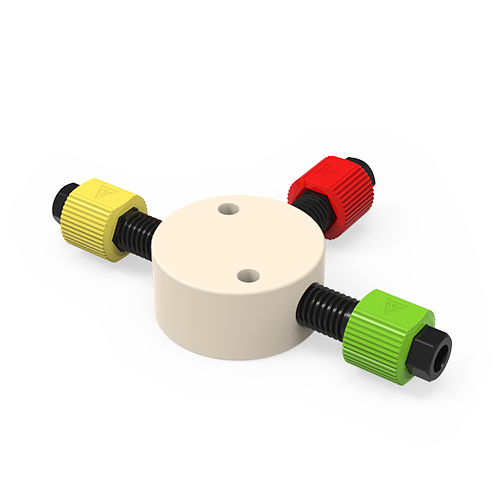

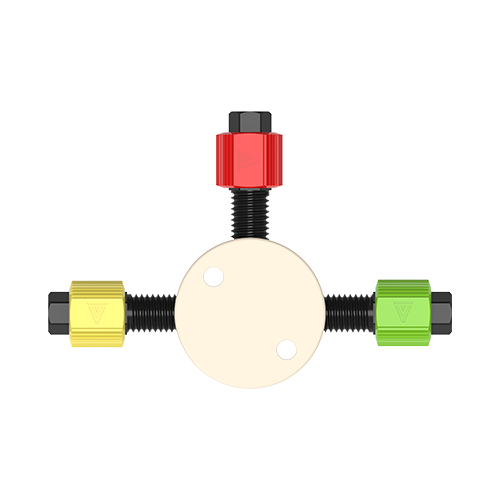

VICI Jour PEEK tees are available as the body only, or complete with fittings. A tee with fittings includes:

  • 3 PPS flangeless hex-head nuts
  • 3 ETFE inverted ferrules
  • 3 Color-Sleeve adapters

Specs

For 1/16" and 1/8" OD tubing with flangeless connections


Materials:

Part Material
Body PEEK
Nuts PPS
Ferrules ETFE

Threads: 1/4-28 threads


Body size

25.0 mm diameter

12.0 mm thick


Pressure rating:(varies with tubing material and ID)

OD Bar PSI
1/16" 105 1500
1/8" 35 500


TECH TIPS

Use our impermeable tubing to avoid gas diffusion in the solvent lines.

While PEEK Tees are typically used with inverted ferrules, collapsible ferrules or flanged connections can also be used


More Info

Properties of Polymers

Spare parts

Description Tubing OD Qty/pkg Product No.
PPS flangeless nuts 1/16" 10 JR-55070-10
1/8" 10 JR-55071-10
Inverted ETFE ferrules 1/16" 10 JR-041-10
1/8" 10 JR-051-10

See Also

High-Pressure PEEK Tees

Color-Sleeve Adapters, available in 12 colors

Spare Parts
