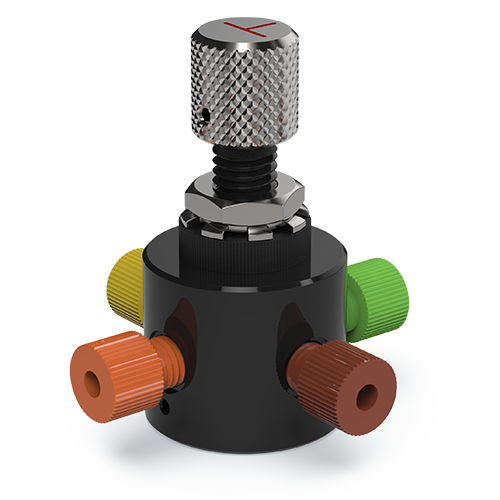

Micro Valves for LC and GC T Flowpath -4 port

Simplify your liquid or gas handling application with a VICI Precision Sampling Micro valve. In a compact 1” design, the unique fitting detail allows a leak-free seal with no potential for rotor damage from over-tightening. Micro valves come in a variety of flow-path configurations (see image) and are pressure-rated to 50 psi for gas and 100 psi liquid.

Micro valves offer convenient panel mounting (8 mm hole required, max. 4.5mm thickness of the panel mount hole), with internal parts made of PEEK and PTFE. Other part number reference numbers are JR-660100 and JR-660110.

Flowpath configurations

Includes fittings for 1/8" OD tubing:

• 1 PPS flangeless hex-head nuts per port
• 1 PCTFE collapsible ferrules per port
• 1 Color-Sleeve adapter per port

For 1/16" and 1/8" OD tubing, flangeless connections

Pressure rating:

• 50 psi gas – tested with helium using 1/16" OD x 0.84 mm ID PTFE tubing with PEEK collapsible ferrules
• 100 psi liquid – tested with isopropanol using 1/8" OD x 0.75 mm ID PTFE tubing with PCTFE collapsible ferrules

See Properties of Polymers

TECH TIPS

• Use our impermeable tubing to avoid gas diffusion in the solvent lines
• While these valves are typically used with collapsible ferrules, inverted ferrules or flanged connections can also be used
