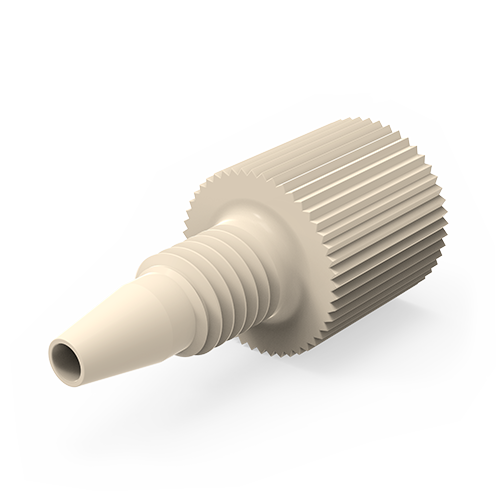

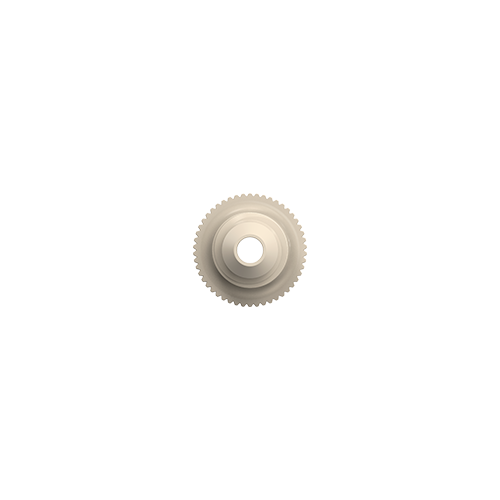

PEEK One-Piece Fingertight Fittings - Natural (5 Pack)

VICI Jour SKU: JR-5502-5

Construction: Natural PEEK Standard Nut - Machined
Quote Only


Two attractively-priced fittings made of molded reinforced glass fiber (GF) PEEK. Offering excellent chemical and mechanical properties, they are biocompatible one-piece fittings (no ferrule required). These PEEK fingertight fittings are rated to 350 bar (5,000 psi) and can be used in virtually any type of 10-32 thread HPLC fitting detail on the market.

Part numbers JR-5513-5 and JR-5518-5 are molded versions, offered at an attractive price. The rest of the fittings are machined for extra precision.

For more information on PEEK, refer to Properties of Polymers and Chemical Resistance of Materials

For 1/16” OD tubing

Material: Polyetheretherketone (PEEK)

Pressure rating:180 bar (2,600 psi)

(Varies with tubing material and ID)

Threads: 10-32

Tolerance: Tolerance: ±0.05 mm (.002")
