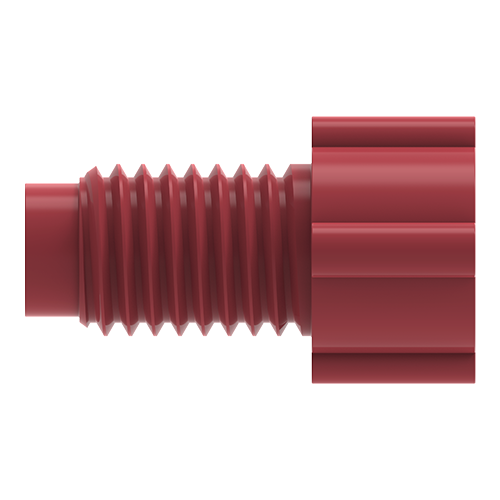

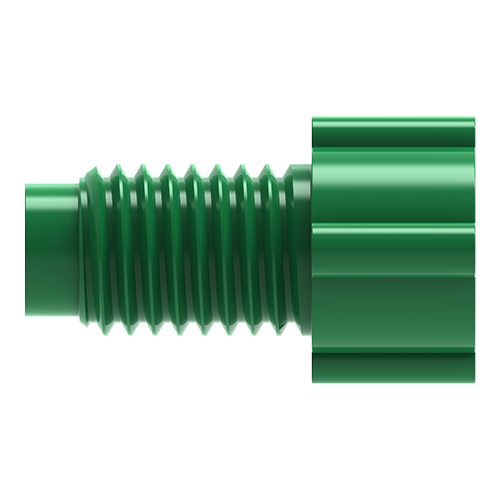

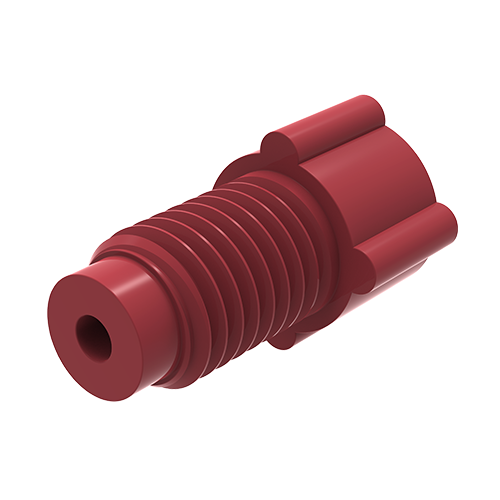

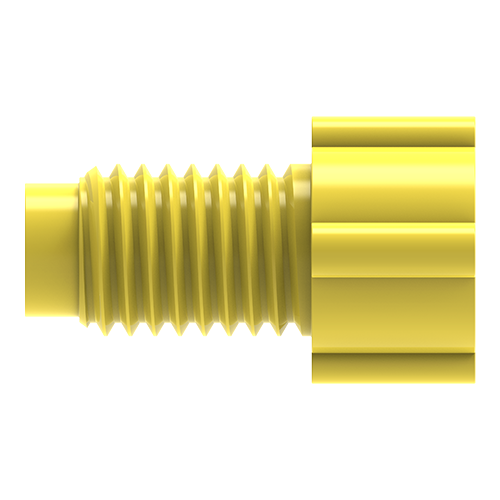

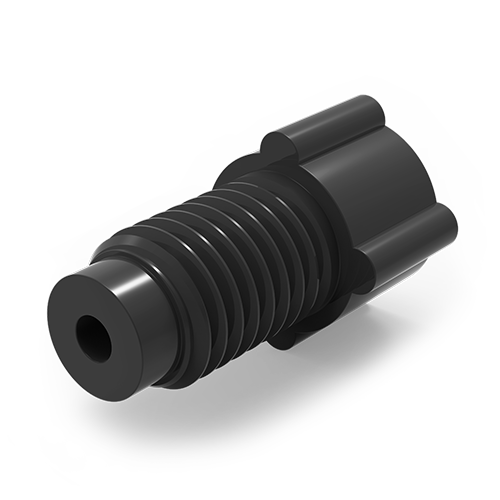

Polypropylene Color-Coded Fingertight Nuts for Flanged 1/4-28 Connections (For 1/16" Tubing OD)
Part Number #JR-201094BK-10
$14.50
For systems and applications where flanged connections are required or preferred, these fittings provide a clean connection. Made from fiberglass-reinforced polypropylene (PP), these nuts are for use with the VICI Jour Easy-Flange glancing tool and propylene washers. The flange on the tubing ensures that the washer never comes in contact with the mobile phase.
Compatible with all ¼-28 flat-bottom ports, for 1/16” or ⅛” tubing, available in six colors. Washers are not included, order separately.
Specifications
For 1/16” OD tubing
Material: Fiberglass-reinforced polypropylene (PP)
Threads: 1/4-28 threads
Pressure Rating: (varies with tubing material and ID)
30 bar (435 psi)
More Information
Spare Parts
| Description | Quantity | Part Number |
|---|---|---|
| Polypropylene washer | 10 | JR-201926-10 |
