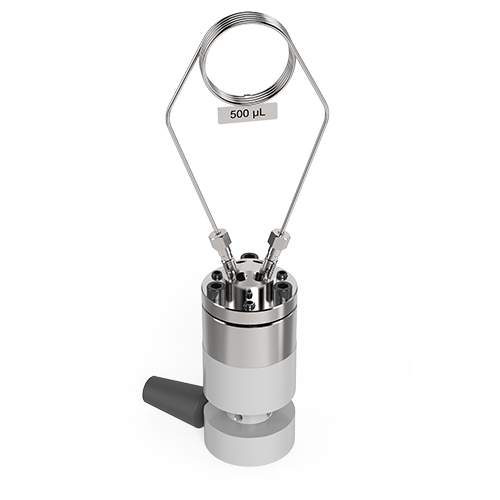

For all Rheodyne® valves, VICI Jour offers stainless steel (SS) sample loops in a wide range of volumes, and special loops for valve Model 7725. Our sample loops are made of high-quality SS316 to ensure high-pressure resistance and low permeability VICI
Stainless steel sample loops are made using an electrolytic cutting process, ultrasonically cleaned and treated with high-pressure steam to remove contaminants, dried, and capped with softener-free caps to avoid recontamination of the tubing. All loops come with stainless hex-head nuts and stainless ferrules for reliable connections.
Other sample sizes are available on request. Please contact your distributor or VICI Jour directly.
Not recommended for use with halides.
We offer nuts in three lengths to facilitate wrench access on valves.
For loops that will be replaced frequently, we recommend our longest nut—particularly when space is restricted. Refer to extra-long nuts
Tolerances:±0.05 mm (.002")
Pressure rating: ≤ 1375 bar (20,000 psi)
Refer to Properties of Metals for more information about 316 stainless steel.
|1/16" Rheodyne Type Stainless Steel Nuts for valve 7725, Long Head||5||JR-57-5|
|1/16" Rheodyne type stainless Steel X-Long Nut for Valve 7725||5||JR-58-5|
|Stainless ferrules 1/16"||5||JR-59-5|
|2-step Rheodyne type, 1/16"||5||JR-60-5|
