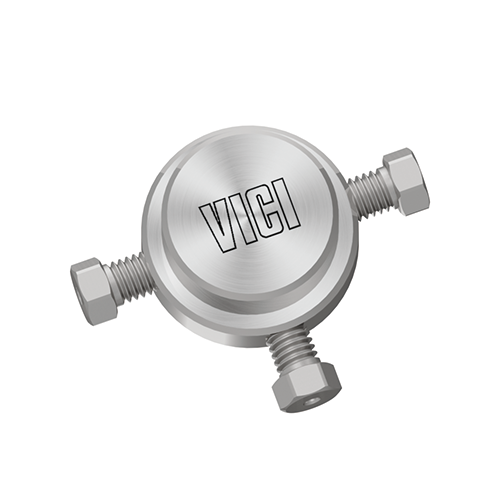

Stainless Steel Tee - For 1/16'' Tubing

VICI Jour SKU: JR-ZT1

Bore: 0.75 mm
Price:
$35.50

Overview

Easily connect three solvent lines of 1/16” OD metal tubing with VICI Jour stainless-steel tees.  They are precision machined with a focus on the concentricity of the bore and on surface finish to ensure a completely leak-free connection.

The tees and crosses have internal threads, which we recommend for most applications. For high-performance instrumentation use, internal threads make stronger connections and internal fitting details provide the lowest dead volume.

Tees are offered with three different bore sizes: 0.25 mm, 0.50 mm, and 0.75 mm.

Three nuts and ferrules ship with each tee.



For 1/16" OD tubing



Material:

Part Material
Body Type 316 SS
Nuts Type 303 SS
Ferrules Type 316 SS



Body size:

 23.4 mm diameter

 12.7 mm thick



For more information on stainless steel, refer to Properties of Metals
