Valco® High Pressure Stainless Plugs and Caps

Part Number #ZC.5

$18.00 Sale Save
Tubing OD
Type

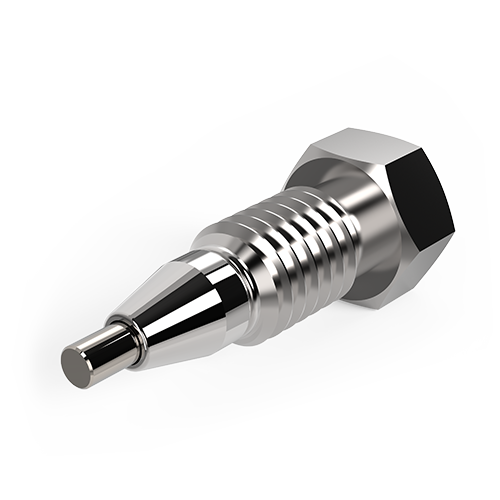

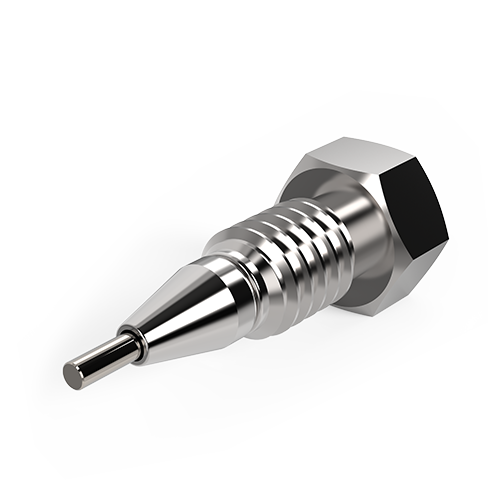

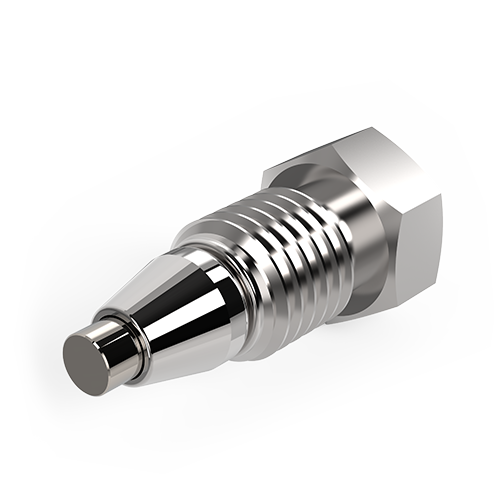

Use a plug to close off an unused port in a valve, manifold, or HPLC column. The standard stainless plug consists of a zero-volume nut with a ferrule made from a piece of solid rod.

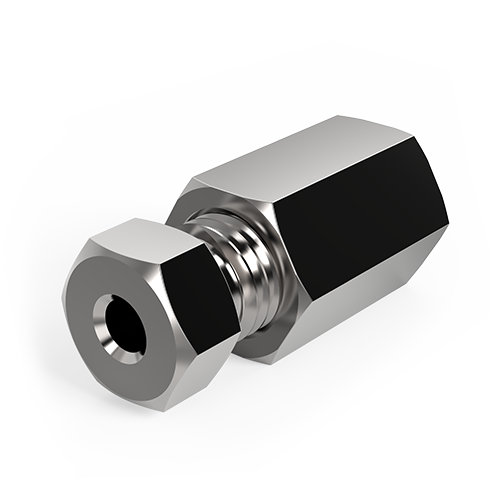

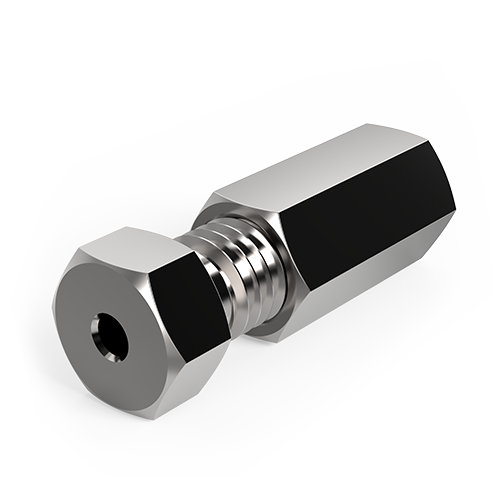

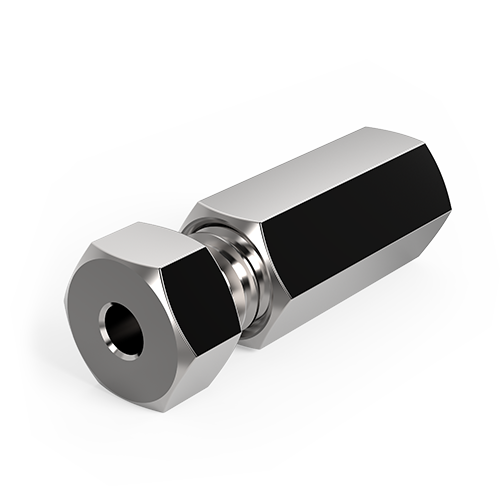

Use a cap to close off a tube that already has a ferrule and internal nut. A cap is essentially a piece of hex stock with a zero-volume fitting detail machined into it, minus the through-hole.


For more information on stainless steel, refer to Properties of Metals


Specifications

For 1/16" and 1/8" fittings

Material
1/16" plug Type 316 SS
⅛” plug Type 303 SS
Caps Type 303 SS

Threads
1/16" 10-32
1/8"

5/16-24
