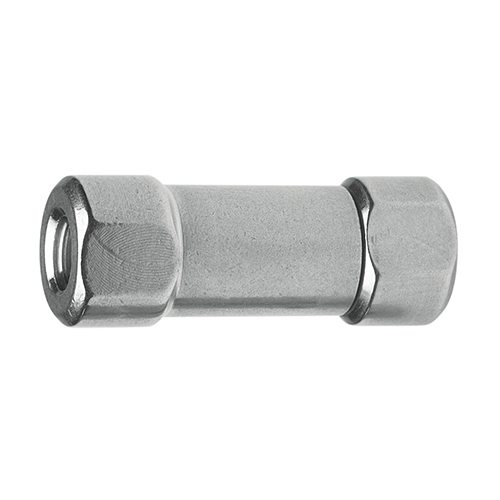

Stainless Steel In-Line Filter - Ultra-High Pressure
Part Number #JR-68230-02
The stainless steel in-line filter has virtually no hold-up volume and can be used in various applications without significant band broadening or loss of efficiency.
Advantages of Stainless Steel UHPLC In-line Filters
- Up to 1375 bar / 20,000 psi (450 bar / 6500 psi for 0.2 micron porosity)
- Minimized hold-up volume
- Two bores (0.25 mm, 0.75 mm) for analytical and semi-prep flow rates
- Four porosity options
The 0.25 mm bore versions are intended for analytical use between an autosampler/injection valve and column. The 0.75 mm bore versions are suitable for higher flow rates in semi-prep systems or for solvent supply from pump to autosampler.
With minimal dead volume and available frit porosities of 0.2, 0.5, 2 or 5 µm, these in-line filters are the ideal column protectors.
Specifications
Materials:
| Part | Material |
|---|---|
|
Body |
316 stainless steel |
|
Frit |
PEEK-encased 316 stainless steel |
- 0.25 or 0.75 mm bore
- 10-32 female to 10-32 male threads
- Pressure rating 1375 bar ( 20,000 psi)
TECH TIP
We recommend 2 µm frits for columns with 5 µm or larger particles, and 0.5 µm frits for smaller particles.
Links:
Learn more aboutVICI Jour Frits
Look up Frit Volume Calculations
Spare Parts
Replacement frits
| Bore size | Pore size | Frit volume | Qty/pkg | Part Number |
|---|---|---|---|---|
| 0.25 mm | 0.2 µm | 0.11 µL | 5 | JR-1110-02P-5 |
| 0.25 mm | 0.5 µm | 0.13 µL | 5 | JR-1110-05P-5 |
| 0.25 mm | 2 µm | 0.18 µL | 5 | JR-1110-2P-5 |
| 0.25 mm | 5 µm | 0.20 µL | 5 | JR-1110-5P-5 |
| 0.75 mm | 0.5 µm | 0.55 µL | 5 | JR-1111-05P-5 |
| 0.75 mm | 2 µm | 0.74 µL | 5 | JR-1111-2P-5 |
| 0.75 mm | 5 µm | 0.80 µL | 5 | JR-1111-5P-5 |
| 0.75 mm | 10 µm | 0.87 µL | 5 | JR-1111-10P-5 |
