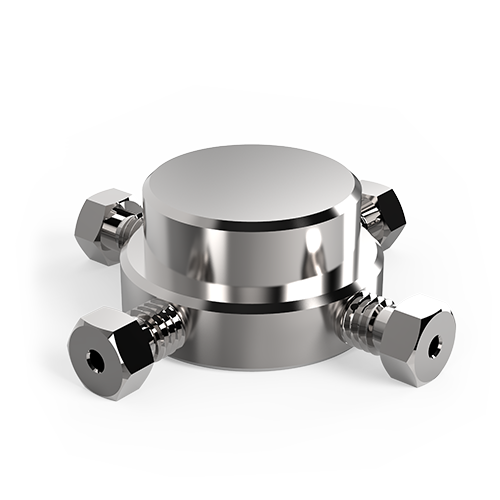

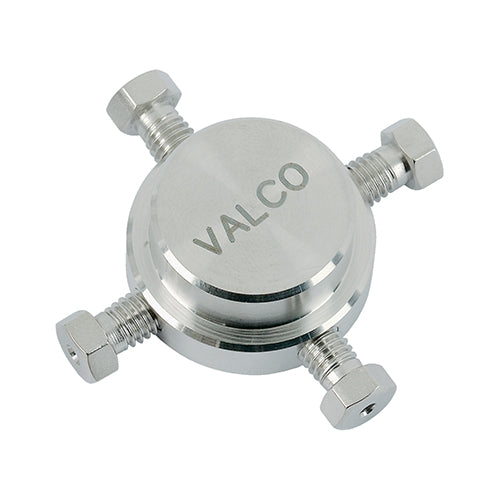

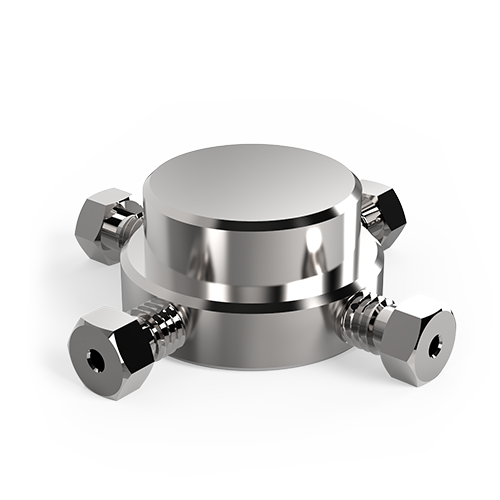

Easily connect four solvent lines of 1/16” OD metal tubing with VICI Jour stainless steel crosses. They are precision machined with a focus on the concentricity of the bore and the surface finish to ensure a completely leak-free connection.

The tees and crosses have internal threads, which we recommend for most applications. For high-performance instrumentation use, internal threads make stronger connections, and internal fitting details provide the lowest dead volume.

Crosses are offered with three different bore sizes: 0.25 mm, 0.50 mm, and 0.75 mm.

Four nuts and ferrules ship with each cross

Specs

For 1/16" OD tubing

Body size:

23.4 mm diameter

12.7 mm thick

For more information on stainless steel, refer to Properties of Metals

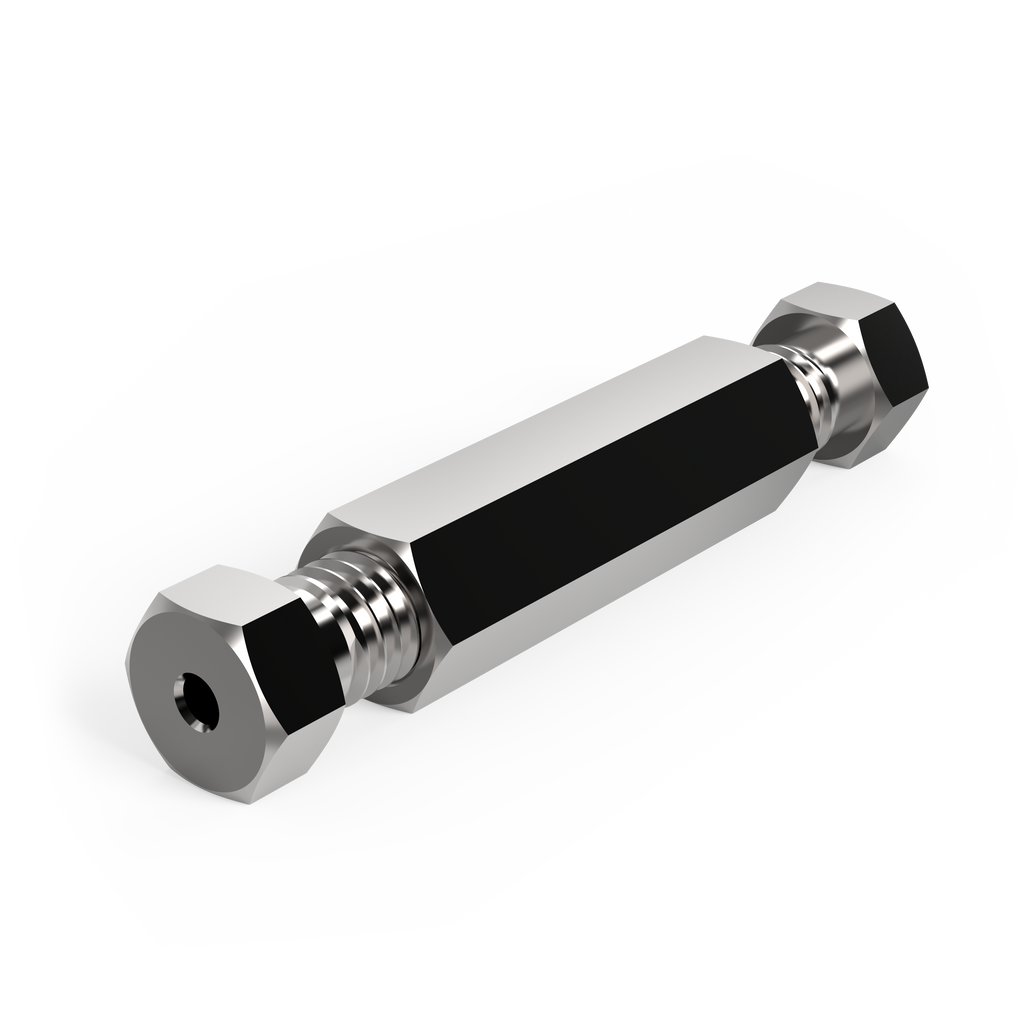

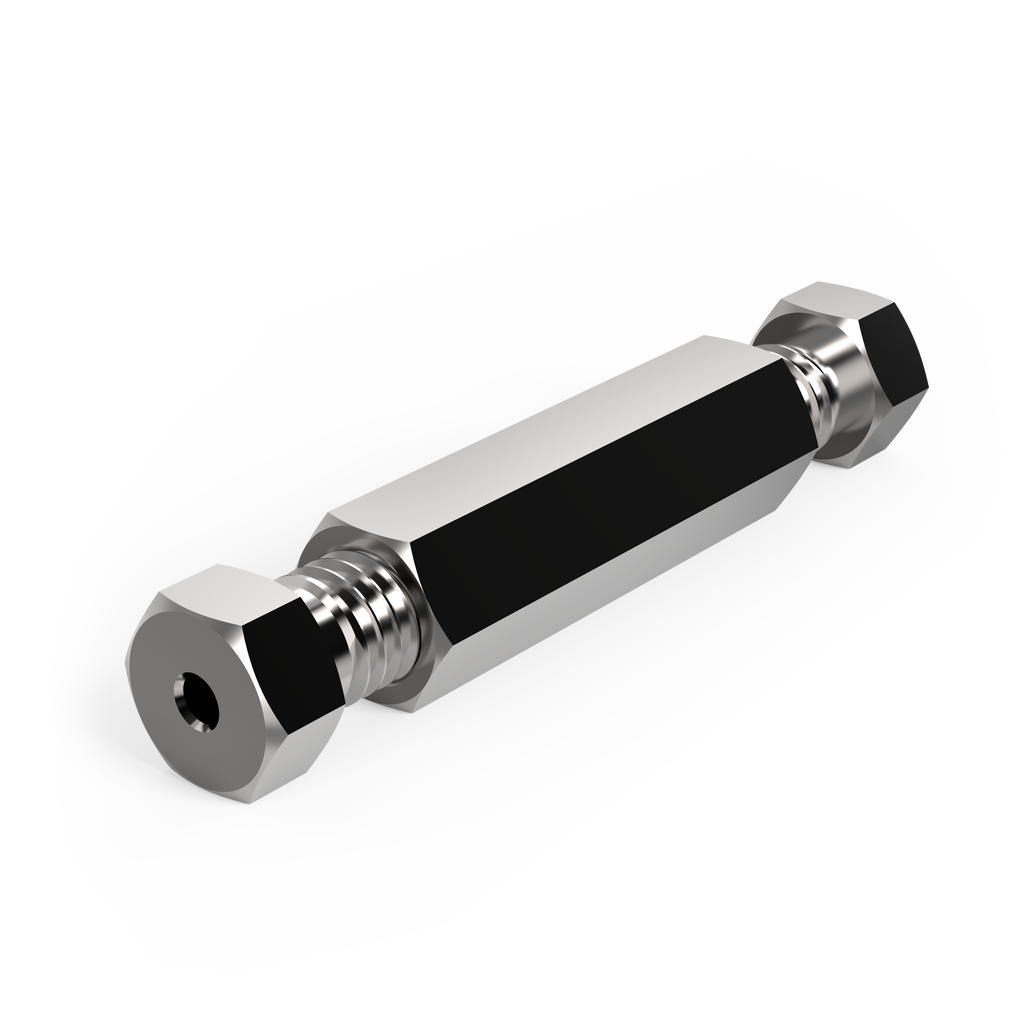

VICI Jour stainless-steel unions are for joining two pieces of 1/16" OD tubing, with a choice of four bores for easy connection of solvent lines. Unions are precision machined with a focus on the concentricity of the bore and on surface finish to ensure a completely leak-free connection.

The unions have internal threads, which we recommend for most applications. For high-performance instrumentation applications, internal threads make stronger connections and internal fitting details provide the lowest dead volume.

Two nuts and ferrules ship with each union.

Specifications

For 1/16" OD tubing

Material:

Pressure rating:1,375 bar (20,000 psi)
(Varies with tubing material and ID)

For more information on Stainless Steel, refer to Properties of Metals

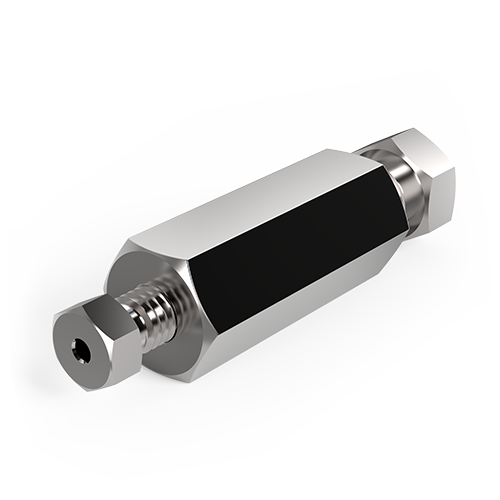

VICI Jour reducing unions join 1/16" OD tubing to ⅛” OD tubing. They are precision machined with a focus on the concentricity of the bore (0.75 mm) and on surface finish to ensure a completely leak-free connection.

The unions have internal threads, which we recommend for most applications. For high-performance instrumentation use, internal threads make stronger connections and internal fitting details provide the lowest dead volume.

Two nuts and ferrules ship with each reducing union.

Specifications

For joining 1/16" and ⅛” OD tubing

Bore: 0.75 mm

Material:

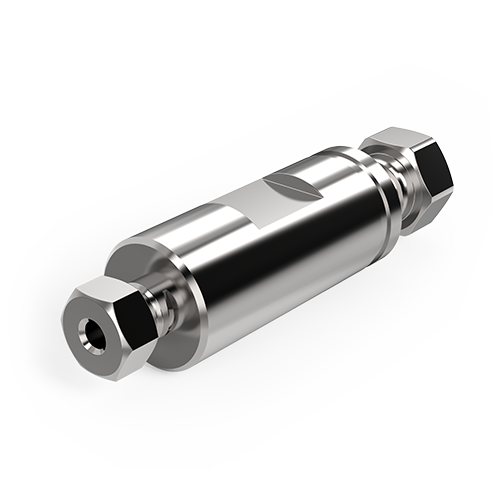

Specifications

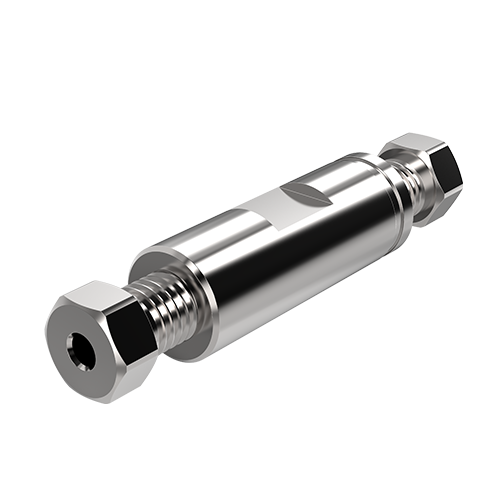

TUBE REDUCING ODs

1/32" to 1.0 mm

1/16" to 2.0 mm

1/8" to 3.0 mm

Material:
