PEEK Nuts with Double Ferrules - for 1/16'' OD Tubing

VICI Jour SKU: JR-5004-5

Type: Double Ferrule
Quantity: 5
Quote Only

Overview

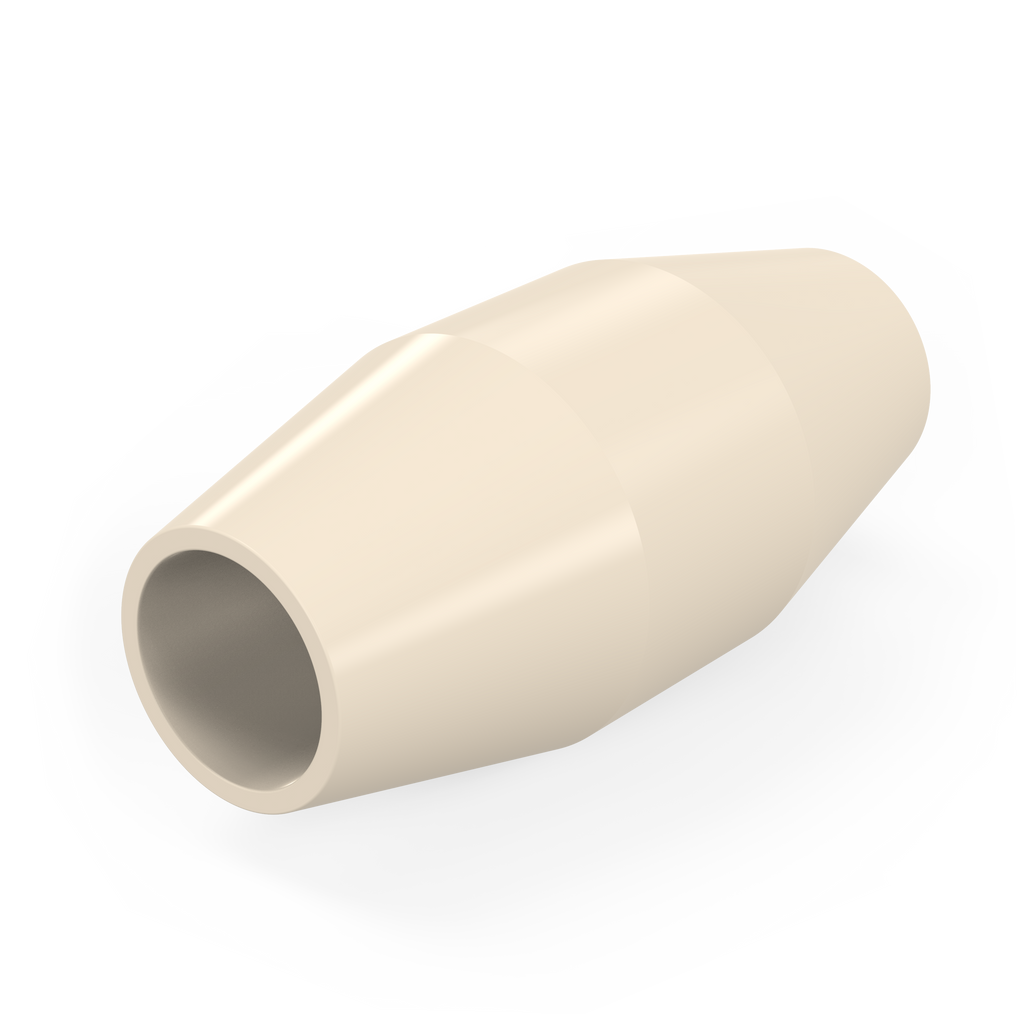

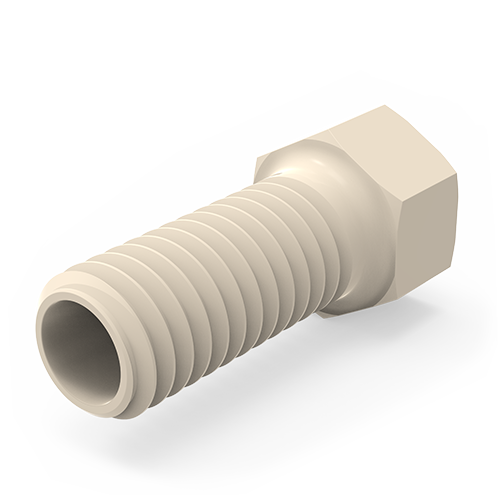

These nuts are for use with VICI Jour double ferrules, which grip the tubing twice for added stability. They fit any 10-32 fitting, The fingertight version may be hand-tightened for operation at up to 420 bar (6,000 psi). The hex-head version can be used for connections that are difficult to reach or closely spaced. They fit any 10-32 fitting and work in virtually any female 1/16" fitting.

For more information on PEEK, refer to Properties of Polymers and Chemical Resistance of Materials


For 1/16” OD tubing

Material: Polyetheretherketone (PEEK)

Pressure rating:420 bar (6,000 psi)(Varies with tubing material and ID)

Threads: 10-32
