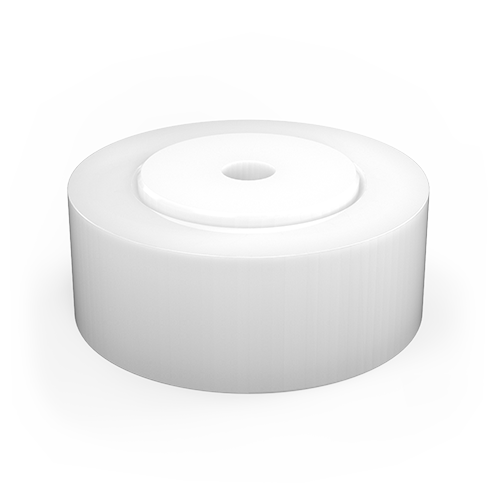

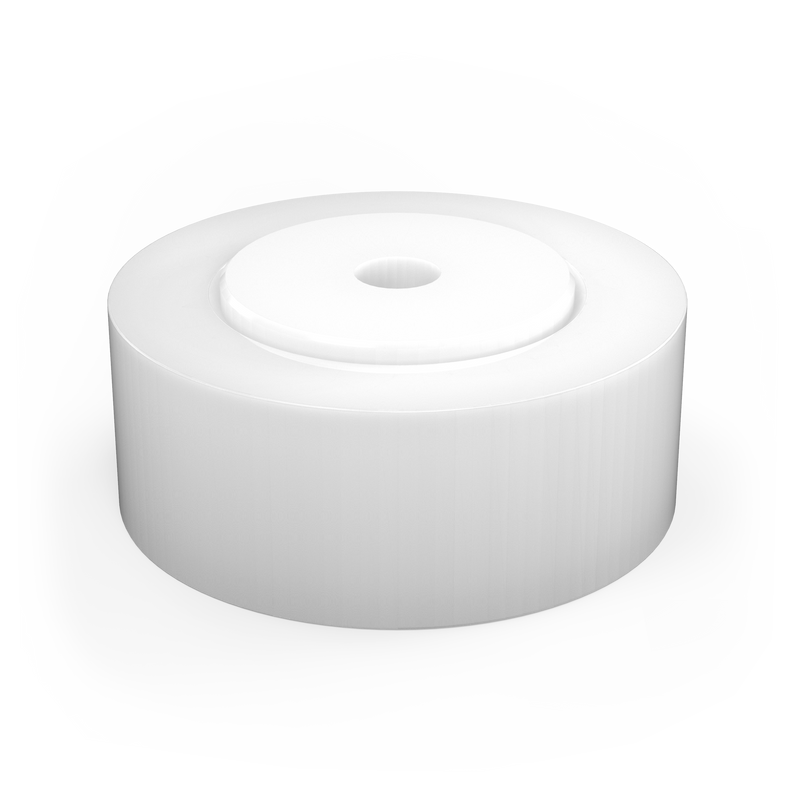

In-line Filter Cartridges - Low Pressure

VICI Jour SKU: JR-CFE-S2-5

Pore Size: 2 µm
Maximum Flow Rate: 30 ml/min
Quote Only

Overview

These convenient in-line filters can be dropped into any 1/4-28 fitting detail, such as in a union, with a compact design that makes them easy to replace. These compact, easy-to-replace cartridges are constructed of PTFE and CTFE, with a 316 stainless steel low-pressure-drop screen. The design of the inner cartridge ensures equal distribution of the solvent to the screen.

TECH TIP

We recommend using these filter cartridges in combination with our low-pressure fittings:



Materials:

Properties of Polymers

Properties of Metals

Materials:
Cartridge PTFE/PCTFE
Filter screen 316 stainless

Dimensions:

Dimensions:
OD 5.20 mm
Thickness 2.03 mm
Bore 0.8 mm
Filter surface diameter 2 mm

  • For all 1/4-28 fitting details
  • Tolerances ±0.05 mm (.002")
